Unsupervised Cross-Modal Hashing · Spiking Neural Networks · Efficient Retrieval

SpikeHash: Learning Binary Codes with Spiking Neural Networks for Cross-Modal Hashing Retrieval

SpikeHash is an unsupervised spiking framework for cross-modal hashing retrieval. It replaces the conventional continuous hash-head paradigm with spike-state evolution, directional spike interaction, and positive-negative spike competition, directly coupling cross-modal semantic learning with binary hash-code generation.

Yukuan Zhang, Jiarui Zhao, Shangqing Nie, Shengsheng Wang

College of Computer Science and Technology, Jilin University · Key Laboratory of Symbolic Computation and Knowledge Engineering of Ministry of Education

Code Results BibTeX

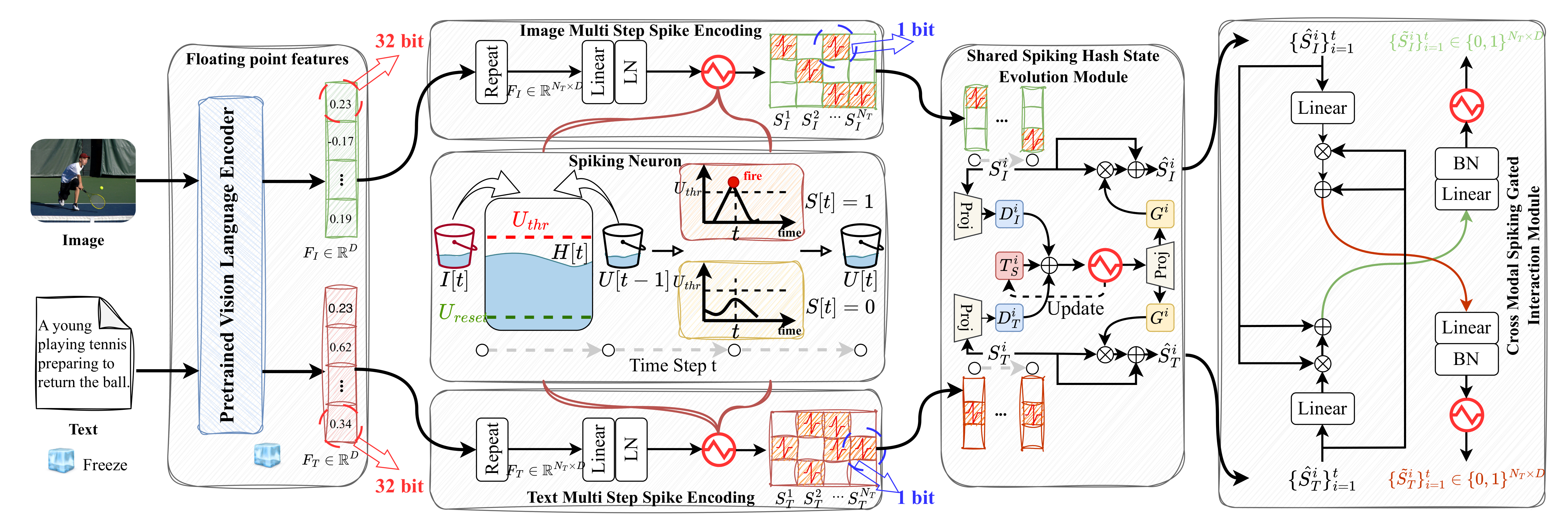

SpikeHash method overview — Overview of SpikeHash. CLIP image/text features are converted into multi-step spike sequences, regulated by a shared spiking hash state, modulated across modalities, and read out through spike competition. Original PDF

Abstract

Cross-modal hashing retrieval encodes heterogeneous data into compact binary codes for efficient Hamming-space search. Existing methods usually learn cross-modal semantics in continuous feature spaces and generate binary codes through a final sign operation, which weakly couples training optimization with discrete hash retrieval. We propose SpikeHash, a unified spiking framework that formulates cross-modal hashing as spike-state evolution, directional spike interaction, and competitive spike readout. Specifically, SpikeHash converts image and text features into multi-timestep spike sequences. In a shared Hamming space, the two spike sequences jointly drive the temporal evolution of a shared hash state. Cross-modal interaction is further performed through directional spike modulation, enabling each modality to influence the firing dynamics of the other. Crucially, SpikeHash replaces the conventional continuous hash head with a positive-negative hash readout, where each hash bit is produced by temporal competition between paired spike channels. Experimental results show that SpikeHash maintains competitive retrieval accuracy while effectively reducing the number of parameters, computational cost, and energy consumption, demonstrating the potential of spiking neural networks for efficient cross-modal hashing retrieval.

Motivation

Why revisit cross-modal hashing with spiking computation?

Continuous proxy vs. discrete retrieval

Many hashing pipelines optimize dense floating-point representations and only quantize them at the end. The optimized space is continuous, whereas deployment relies on discrete Hamming neighborhoods.

Dense ANN computation before hashing

Existing methods can still depend on dense ANN modules before generating compact hash codes, limiting low-power and neuromorphic deployment.

Unsupervised spike-driven binary learning

SpikeHash treats hash learning as spike-state regulation, directional cross-modal modulation, and competitive spike readout, aligning unsupervised cross-modal learning with the final binary code.

Limitations of continuous hashing and dense ANN computation — Two limitations addressed by SpikeHash: continuous proxy optimization differs from discrete retrieval, and dense ANN interaction can be expensive before hash code generation. Original PDF

Method

Multi-step spike encoding

Static pretrained image and text features are repeated over time and transformed by PLIF neurons into sparse spike sequences.

Shared Spiking Hash State Evolution

SSHSE builds a shared spiking hash state jointly driven by image and text spike events, then feeds the state back to both modalities through residual modulation.

Cross-Modal Spiking Gated Interaction

CMSGI performs directional text-to-image and image-to-text channel modulation without constructing dense token-to-token attention matrices.

Positive-negative hash readout

Each hash bit is generated by temporal competition between positive and negative spike channels, reducing the mismatch between training scores and inference codes.

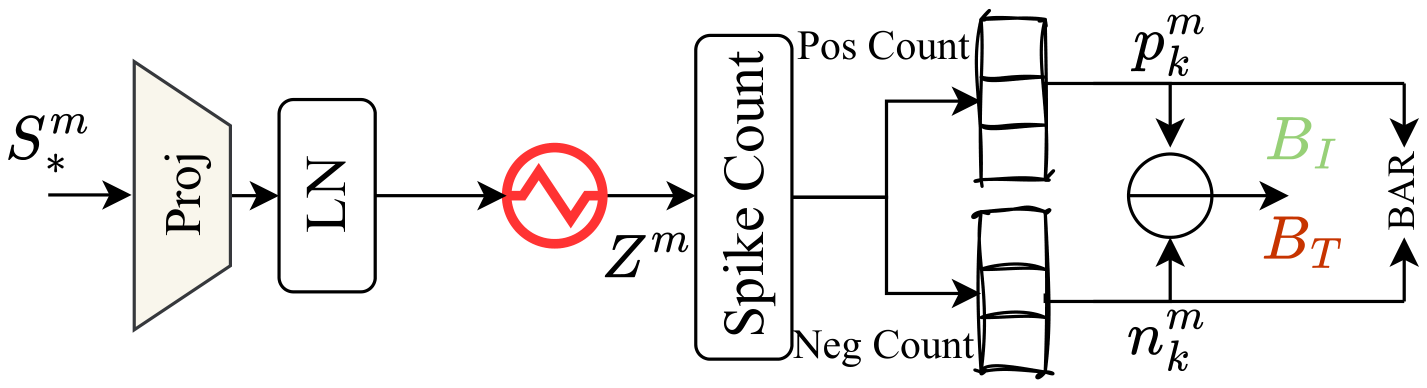

Positive-negative spiking hash head. Each hash bit is determined by the difference between accumulated positive and negative spike counts. Original PDF

Experiments

Retrieval accuracy is shown as data-first visual cards.

MSCOCO 16 bits

I2T 0.909

T2I 0.910

MSCOCO 32 bits

I2T 0.933

T2I 0.933

MIRFlickr 128 bits

I2T 0.961

T2I 0.960

NUS-WIDE 128 bits

I2T 0.893

T2I 0.891

Table I

Retrieval accuracy comparison

mAP@50 comparison with state-of-the-art cross-modal hashing methods on MIRFlickr, NUS-WIDE, and MSCOCO. I2T and T2I denote image-to-text and text-to-image retrieval.

Best Second Third

Task	Method	Source	MIRFlickr				NUS-WIDE				MSCOCO
Task	Method	Source	16 bits	32 bits	64 bits	128 bits	16 bits	32 bits	64 bits	128 bits	16 bits	32 bits	64 bits	128 bits
I2T	CMFH [8]	CVPR14	0.621	0.624	0.625	0.627	0.455	0.459	0.465	0.467	0.621	0.669	0.525	0.562
	DBRC [9]	MM18	0.617	0.619	0.620	0.621	0.424	0.459	0.447	0.447	0.567	0.591	0.617	0.627
	UDCMH [10]	IJCAI18	0.689	0.698	0.714	0.717	0.511	0.519	0.524	0.558	–	–	–	–
	DJSRH [11]	ICCV19	0.810	0.843	0.862	0.876	0.724	0.773	0.798	0.817	0.678	0.724	0.743	0.768
	AGCH [12]	TMM21	0.865	0.887	0.892	0.912	0.809	0.830	0.831	0.852	0.741	0.772	0.789	0.806
	CIRH [13]	TKDE22	0.901	0.913	0.929	0.937	0.815	0.836	0.854	0.862	0.797	0.819	0.830	0.849
	UCCH [14]	TPAMI22	0.886	0.915	0.916	0.931	0.830	0.841	0.842	0.842	0.766	0.822	0.830	0.867
	UCMFH [2]†	IF23	0.918	0.950	0.960	0.958	0.853	0.880	0.891	0.897	0.836	0.886	0.908	0.911
	SACH [15]	NN24	0.884	0.904	0.917	0.937	0.789	0.810	0.832	0.850	0.665	0.670	0.702	0.712
	UDDH [17]	TPAMI24	–	0.844	0.899	0.912	–	0.791	0.801	0.822	–	–	–	–
	DDSS [3]†	IF25	0.947	0.963	0.969	0.971	0.871	0.897	0.907	0.911	0.900	0.927	0.940	0.941
	USFTH [16]	MM25	0.899	0.913	0.929	0.939	0.814	0.834	0.855	0.862	–	–	–	–
	AHLR [18]	NeurIPS25	0.820	0.823	0.827	–	0.678	0.688	0.699	–	0.645	0.658	0.680	–
	SCTH [19]	AAAI26	0.894	0.916	0.933	0.938	0.811	0.838	0.857	0.863	–	–	–	–
	UDCH [20]	AAAI26	0.893	0.903	0.905	0.913	0.857	0.877	0.884	0.887	0.856	0.886	0.901	0.914
	SpikeHash	Ours	0.932	0.951	0.958	0.961	0.855	0.882	0.890	0.893	0.909	0.933	0.936	0.940
T2I	CMFH [8]	CVPR14	0.642	0.662	0.676	0.685	0.529	0.577	0.614	0.645	0.627	0.667	0.554	0.595
	DBRC [9]	MM18	0.618	0.622	0.626	0.628	0.455	0.459	0.468	0.473	0.635	0.671	0.697	0.735
	UDCMH [10]	IJCAI18	0.692	0.704	0.718	0.733	0.637	0.653	0.695	0.716	–	–	–	–
	DJSRH [11]	ICCV19	0.786	0.822	0.835	0.847	0.712	0.744	0.771	0.789	0.650	0.753	0.805	0.823
	AGCH [12]	TMM21	0.829	0.849	0.852	0.880	0.769	0.780	0.798	0.802	0.746	0.774	0.797	0.817
	CIRH [13]	TKDE22	0.867	0.885	0.900	0.901	0.774	0.803	0.810	0.817	0.811	0.847	0.872	0.895
	UCCH [14]	TPAMI22	0.832	0.901	0.906	0.919	0.823	0.839	0.833	0.839	0.765	0.820	0.822	0.866
	UCMFH [2]†	IF23	0.921	0.948	0.960	0.957	0.857	0.882	0.899	0.900	0.826	0.884	0.899	0.907
	SACH [15]	NN24	0.852	0.869	0.875	0.878	0.744	0.771	0.768	0.776	0.662	0.672	0.715	0.711
	UDDH [17]	TPAMI24	–	0.835	0.858	0.869	–	0.771	0.785	0.802	–	–	–	–
	DDSS [3]†	IF25	0.948	0.965	0.968	0.970	0.874	0.903	0.912	0.916	0.896	0.928	0.940	0.938
	USFTH [16]	MM25	0.859	0.878	0.885	0.892	0.770	0.785	0.799	0.805	–	–	–	–
	AHLR [18]	NeurIPS25	0.805	0.805	0.815	–	0.695	0.704	0.714	–	0.645	0.656	0.667	–
	SCTH [19]	AAAI26	0.897	0.915	0.935	0.937	0.810	0.839	0.857	0.862	–	–	–	–
	UDCH [20]	AAAI26	0.884	0.897	0.903	0.909	0.831	0.846	0.855	0.858	0.856	0.885	0.901	0.912
	SpikeHash	Ours	0.933	0.950	0.958	0.960	0.851	0.882	0.890	0.891	0.910	0.933	0.936	0.939

† indicates methods using the same pretrained features as SpikeHash. “–” indicates that the original paper did not report the setting.

Efficiency

Parameter, operation, and energy reduction.

Compared with representative CLIP-based hashing baselines, SpikeHash preserves competitive retrieval accuracy while substantially reducing the hash-learning framework size, computation, and estimated energy consumption.

Parameters 90.1%

fewer parameters than UCMFH

Operations 61.3%

fewer operations than UCMFH

Energy 61.4%

lower estimated energy than UCMFH

Parameters

reduction by SpikeHash

vs UCMFH

90.1%

vs DDSS

84.8%

Operations

reduction by SpikeHash

vs UCMFH

61.3%

vs DDSS

40.8%

Energy

reduction by SpikeHash

vs UCMFH

61.4%

vs DDSS

45.1%

Percentages are computed from the reported 128-bit MIRFlickr efficiency comparison: SpikeHash uses 2.19M parameters, 8.53M operations, and 39 μJ estimated energy, compared with 22.05M / 22.04M / 101 μJ for UCMFH and 14.37M / 14.40M / 71 μJ for DDSS.

Analysis

Generalization, robustness, and Hamming-space behavior.

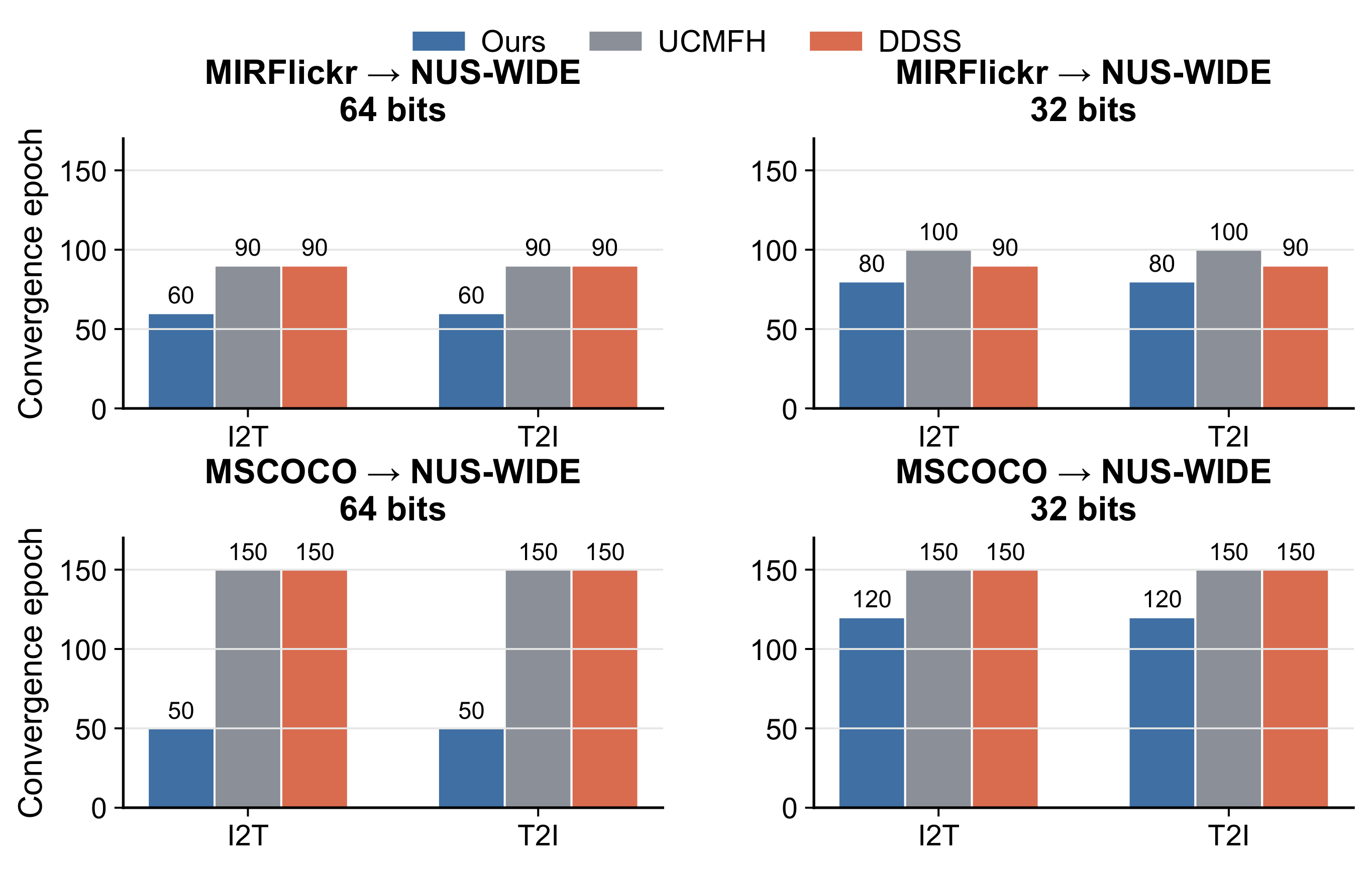

Domain generalization convergence. Original PDF

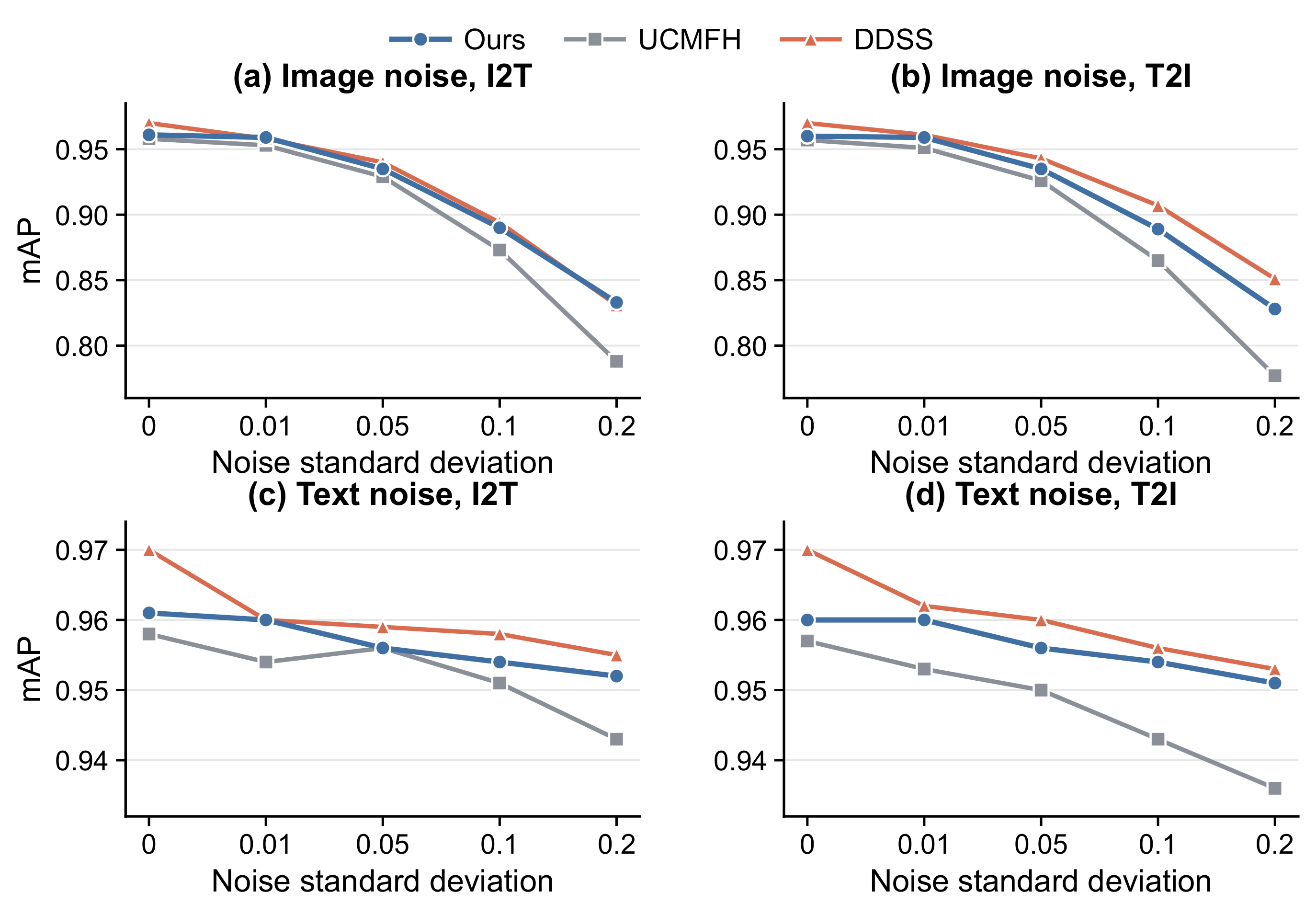

Noise robustness analysis — Noise robustness under image and text perturbations. Original PDF

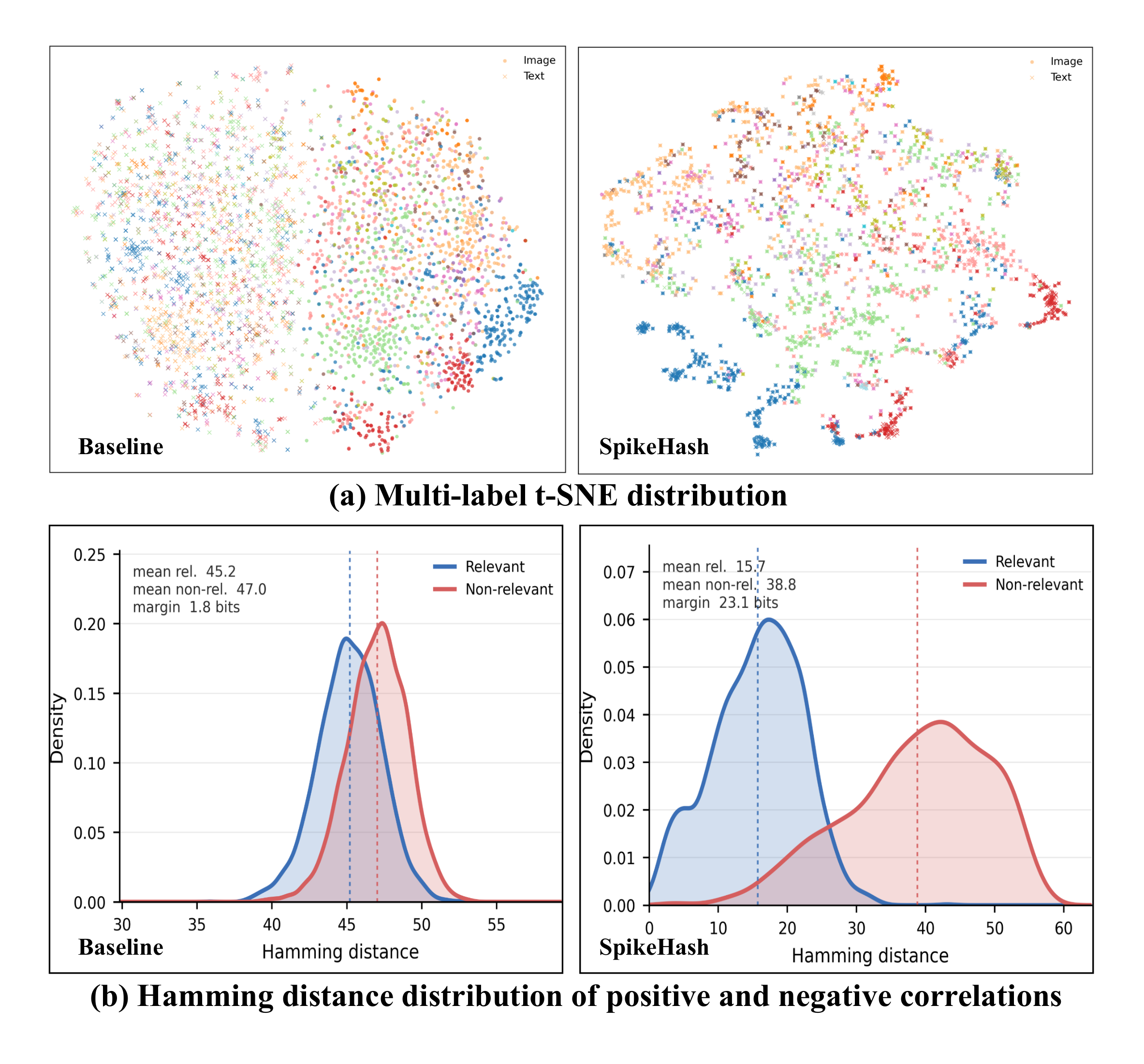

Feature and Hamming-space distribution — t-SNE and Hamming-distance distribution. Original PDF

Qualitative Results

Retrieval examples and failure analysis.

Retrieval Examples

Failure Cases

SpikeHash still faces complex challenges in fine-grained semantic retrieval scenarios. However, these failure samples are usually not entirely irrelevant. Instead, they share partial visual objects or scene elements with the query. This indicates that distinguishing neighboring fine-grained concepts in a compact binary hashing space remains a challenging problem.

Conclusion

Summary

After years of development, cross modal hashing has made steady progress in retrieval performance. However, most existing methods still follow the basic paradigm of continuous representation learning followed by final binary mapping, while the mechanism of binary code generation itself remains relatively underexplored.

In this paper, we propose SpikeHash, a unified spiking computation framework for cross modal hash retrieval. SpikeHash reformulates hash code generation as an event driven process that integrates spiking state evolution, directional cross modal modulation, and positive negative spike competition readout. As a result, binary codes are no longer post processed outputs of continuous representations, but retrieval representations directly formed by neural dynamics.

Experimental results show that SpikeHash achieves competitive retrieval performance on multiple benchmark datasets and under different code length settings, while showing clear advantages in parameter size, computation, and energy consumption. More importantly, SpikeHash shows that spiking mechanisms are not only a low power computing strategy, but also an effective way to rethink the mechanism of discrete code generation in cross modal hashing. We hope this exploration encourages cross modal hashing research to move beyond continuous representation enhancement and toward innovation in the binary representation generation paradigm itself.

Citation

BibTeX

@article{zhang2026spikehash,
  title   = {SpikeHash: Learning Binary Codes with Spiking Neural Networks for Cross-Modal Hashing Retrieval},
  author  = {Zhang, Yukuan and Zhao, Jiarui and Nie, Shangqing and Wang, Shengsheng},
  journal = {arXiv preprint},
  year    = {2026}
}
